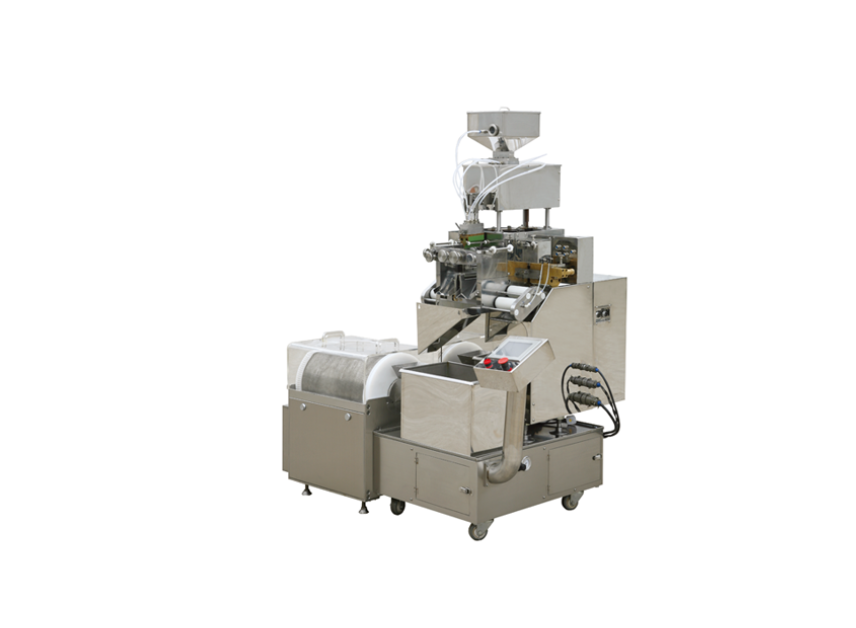

HSR-100 Softgel Encapsulation Machine
Compact. Precise. GMP-Compliant. Designed for R&D Excellence.
The HSR-100 Softgel Encapsulation Machine is engineered by integrating proven softgel manufacturing technology with the specific needs of laboratory-scale production. Designed fully in accordance with GMP standards, the system features a compact, optimized structure, simple operation, and a user-friendly AC220V power setup—making it ideal for small-batch manufacturing, pilot trials, formulation development, and scientific research.
Designed for Modern Softgel R&D
Flexible & Mobile
The HSR-100 Advantage
Compact Design. Complete Functionality. Reliable Softgel Trials.
The HSR-100 Softgel Encapsulation System empowers laboratories and research institutions with a professional-grade solution for trial manufacturing—delivering precision, efficiency, and ease of use in a compact footprint designed for innovation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Die Roller Dimension | Φ64 × 100 mm |
| Die Roller Speed | 0–4 rpm (Stepless Adjustment) |
| Material Feeding Quantity | 6 × (0–1.5 mL) |
| Power | AC 220V, 50Hz, 1.5 kW |
| Weight | Approx. 400 kg |
| External Size (L × W × H) | 620 × 660 × 1350 mm |
HSGZ-2 Dryer – Technical Parameters
| Parameter | Specification |
|---|---|
| Rotating Cage Size | Φ320 × 450 mm |
| Rotation Speed | 16 rpm |
| Motor Power | AC 220V, 50Hz, 90 W |
| Fan Power | AC 220V, 50Hz, 40 W |
| Weight | Approx. 25 kg |
| External Size (L × W × H) | 870 × 400 × 750 mm |
